SNL PAGE REFERENCE

TM9-803 Listing of Parts which were either F, Ford, GPW or GP marked

Aim of this page :- To list  all ''F'' and Ford marked parts and to provide links to other F marked sites.

By clicking on the G503 Logo on the left it will take you to the G503 List of available Parts from this Group

Group 01  ENGINE

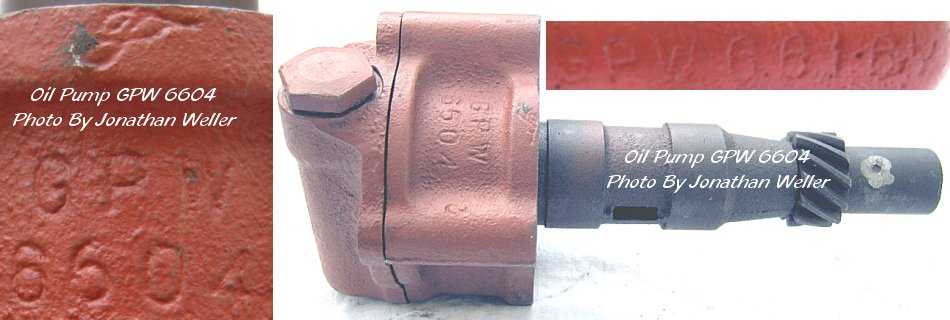

 Oil Pump

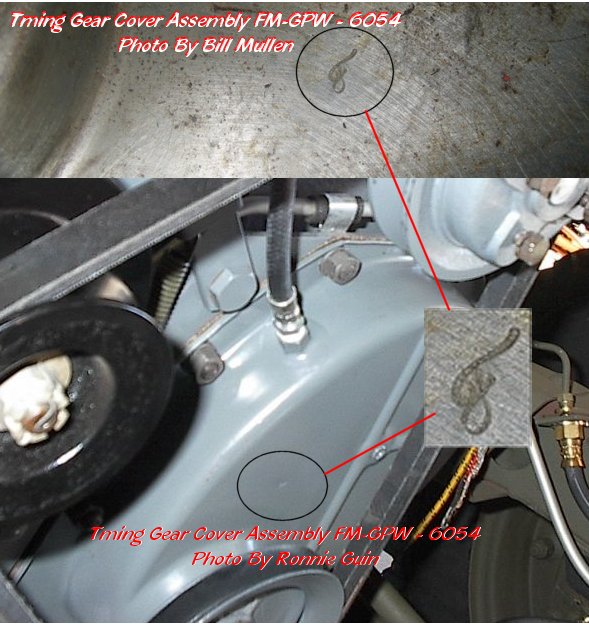

Timing Cover
    Cover    Stay Cable Plate  (Block to Bell Housing)
 Engine Mouting Plate - Late GPW  Late Dip Stick     Early
  Oil Pan (Early Riveted Type )     Inside

  Ring Gear 1944 GPW196511      Early GPW Cast Pulley
Fan Belt Pulley Shield        Stamped Pulley

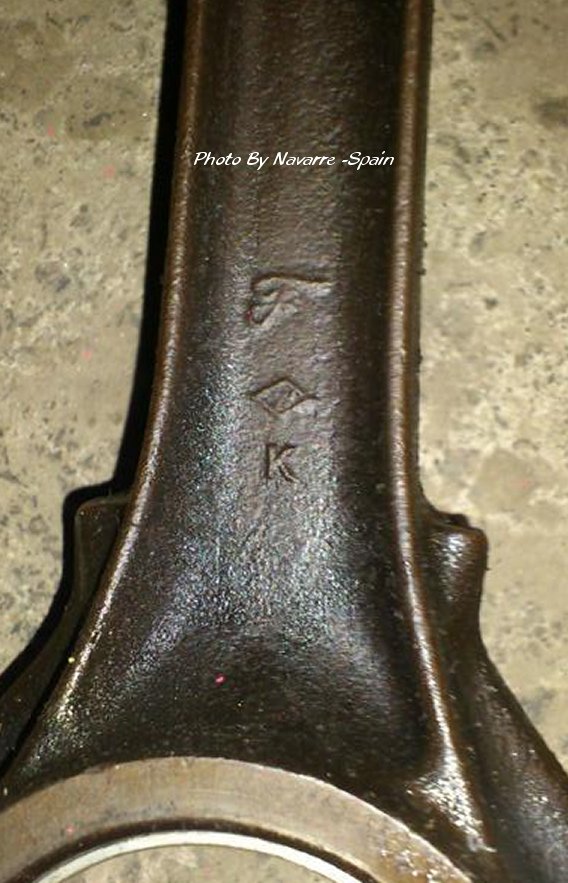

 Tappets  Connecting Rod

        Exhaust INLET Manifolds LATE
  Exhaust INLET Manifold EARLY
   Bolt Sprocket/Camshaft  Cylinder Head
 Bottom stamped Oil Filter Bracket   Camshaft  Valve
 Timing Gear Cover  Plunger
  Crankshaft     Caps
Circle F Engine Mounting Plate Shim     Engine Mount Shims Plain Script F
Timing Chain Drive Gear Timing Cover
Engine Stay Cable


Pre March 1942  Engine Flywheel Housing AKA Bell Housing (above)


 Post March 1942 Engine Flywheel Housing





<>
